MG995 MG996R JR Steering Rotation Servo Motor 180 360 MG 996 High Speed Torque Metal Gear for RC Car Helicopter Arduino Robot
$35.99 – $69.99
✅ Buy 2 items: 1.0% OFF
✅ Buy 3 items: 1.5% OFF
✅ Buy 4+ items: 3.0% OFF
* Discount applies automatically in your cart.
🛫 Order placed: Oct 3
🛬 Order ships: Oct 10 – Oct 13
🧳 Delivered: Oct 17 – Oct 23
💯 15-day return guarantee
🎁 Frequently Bought Together – Get FREE Shipping on 2+ items!
✨ Add any 2 items below and your order ships free!
Add a review
- Hign-concerned Chemical: None
- Is Electric: No battery
- Model Number: MG995 MG996
- For Vehicle Type: Airplanes
- Tool Supplies: Assembled class
- Four-wheel Drive Attributes: Assemblage
- Remote Control Peripherals/Devices: Servos
- Upgrade Parts/Accessories: Adapter
- RC Parts & Accs: Servo Accessories
- Material: Composite Material
- Origin: Mainland China
- Recommend Age: 14+y
- Use: Vehicles & Remote Control Toys
MG996R JR Steering Rotation Servo Motor 180 360 MG 996 High Speed Torque Metal Gear for RC Car Helicopter Arduino Robot
Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc…
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
Connector Wire Length 300mm
Specification:
Product Model: MG996R
Color: Black
Dimension: 40mm x 19mm x 43mm
Rotation Angle:0-180°/360°(Continuous Rotation)
Operating Speed: 0.17sec/60 degrees (4.8V no load)
Operating Speed: 0.14sec/60 degrees (6.0V no load)
Stall Torque: 9.4kg/cm (4.8V)
Stall Torque: 11kg/cm (6V)
Operation Voltage: 4.8 – 7.2Volts
Operating Temperature: 0 ℃- 55 ℃
Gear Material: Half Metal/All Metal
Dead Band Width: 5msec
Operating Mode: Analog
Plug Type: JR, FUTABA General

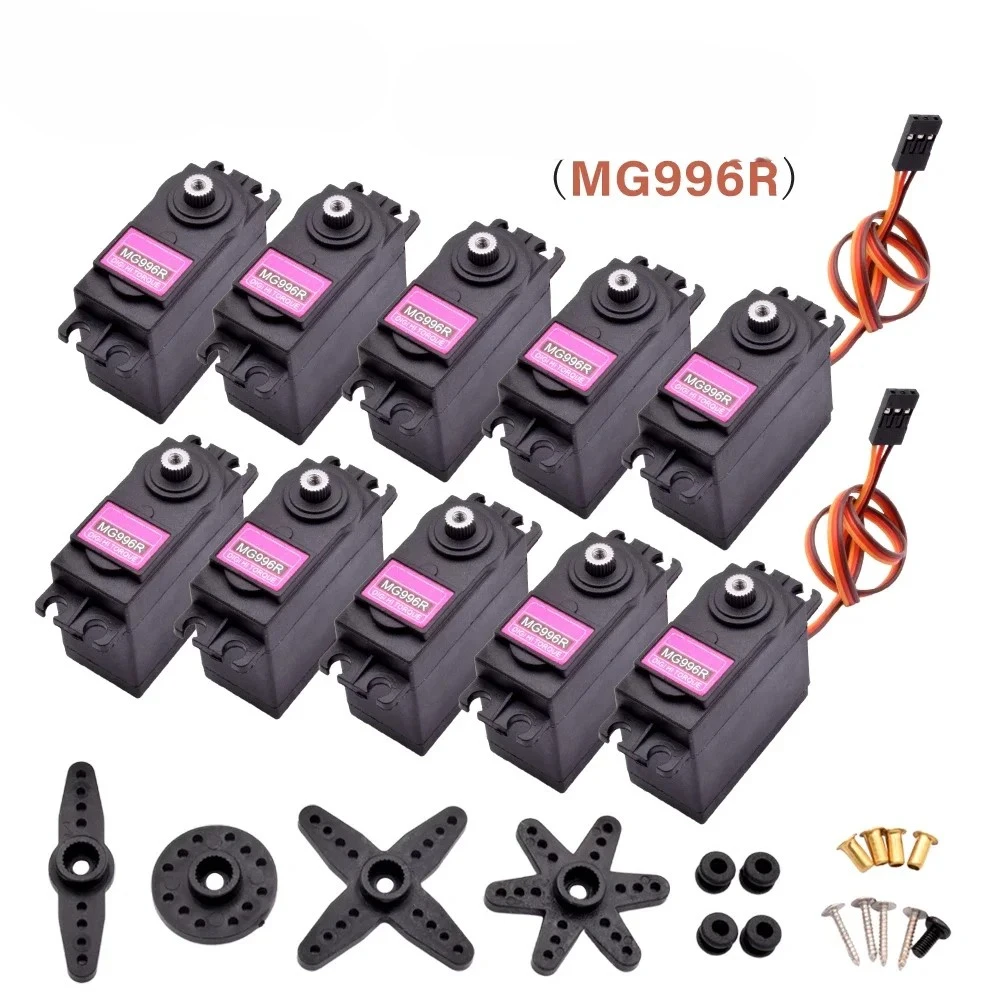

Accessories: Multi-arm, Fixing screws(AS the picture shows)
Connector Wire: 300mm(Brown: Negative; Red: Positive; Orange: Pulse Input)
Steering Gear Control:
The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.
1. Servo 0-180 Degree
The corresponding control relationship is as follows:
0.5ms—————0 degrees;
1.0ms————–45 degrees;
1.5ms————–90 degrees;
2.0ms————–135 degrees;
2.5ms————–180 degrees
For 180 degree servo, please use a professional PWM Servo Controller to control the angle
2. Servo 360 Degree
The steering gear is actually equivalent to a geared motor with infinitely variable speed, which can control the speed and direction of the rotation . There is no 0-360 degree angle control function.
Packing: 5 x MG996R Servo or 10 x MG996R Servo fpr option(Including Accessories)
Please refer to the actual product, there may be an error of 1-2 m.
